NOMINAL DIMENSIONS
| Frame Size |
Length | Width | Height | Weight | Face Mounting | ||||
| in. | mm | in. | mm | in. | mm | lbs | kg | ||
| C | 10.44 | 265,2 | 6.76 | 171,7 | 7.18 | 182,4 | 103 | 46,8 | SAE “C” 2 Bolt |
NOMINAL OPERATING PARAMETERS
| Theoretical Maximum Displacemen | in^3/rev | 6.00 |
| ml/rev | 98,3 | |
| Rated Continuous Pressure | psi | 2000 |
| bar | 137,9 | |
| Peak Pressure | psi | 2500 |
| bar | 172,5 | |
| Flow Rate at1800 RPM, rated continuous pressure & 14.7 psi (1.01 bar abs) inlet conditions | gpm | 42.8 |
| l/min | 162,2 | |
| Maximum Speed | rpm | 1800 |
| Power Input at rated continuous pressure &1800 rpm | hp | 59.7 |
| kW | 44,5 |

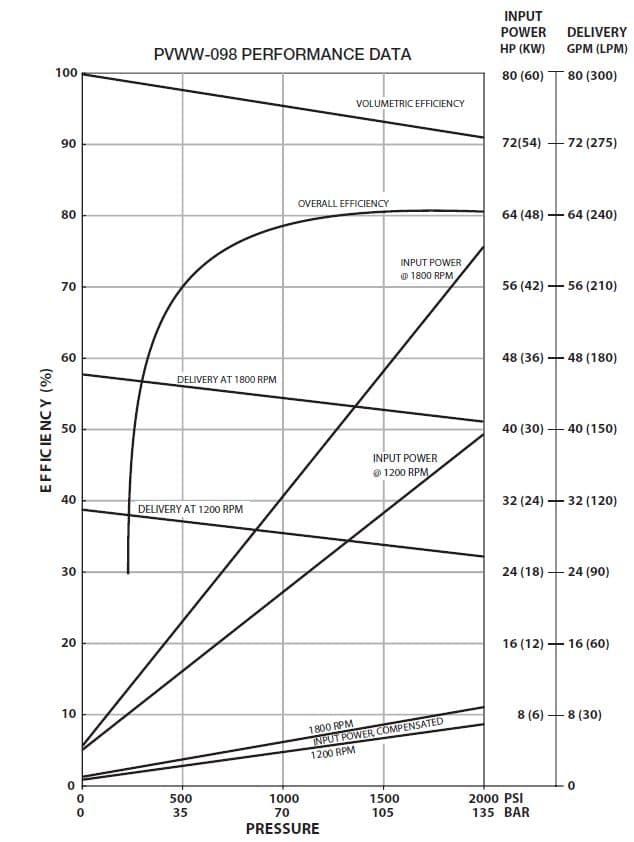

NOMINAL PERFORMANCE
Curves based on an oil temperature of 125º F (160 SSU) and 14.7 psia (1 bar absolute). Efficiency curves are based on pump running at1800 rpm.
