CAD Files
Please see the included documentation.
Documentation
- 80302 - VALVES - VD VDC Valves - Sales Brochure 80302 for Type VD Directional Control Valves Ordering Information Features Benefits and Specifications 01/1995
VD
Max Allowable Working Pressure: 500 BAR

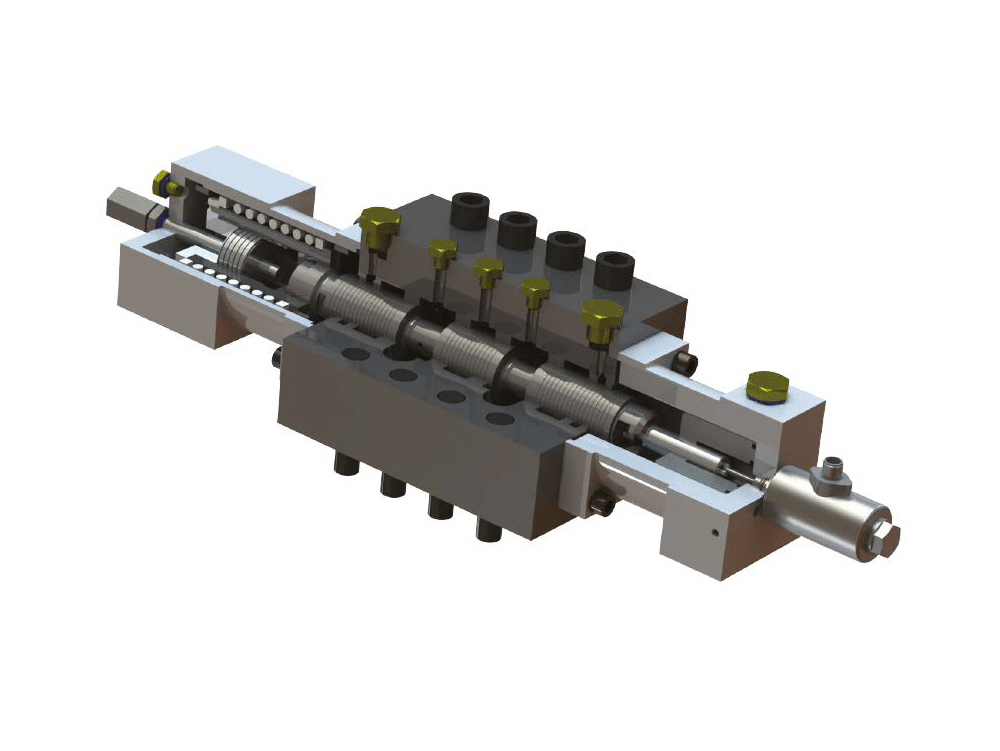

VD - High-Pressure ValvesHigh-Pressure, Directional Control Valves.
Designed to use a low-pressure pilot supply to actuate the valves, the VD line is built for long-term, constant performance. Internal leakage is also minimized in the VD line of high-pressure control valves.
Operation Information
- Sequence with a solenoid valve
- Handles 500 liters per minute
- Maximum pressure is 700 bar
See the included documentation to learn more about the VD line of check valves. With three distinct groups of valves, a range of applications can find solutions within this line.
At a Glance
- Application:Manifold,
- Media:Liquid
- Max Allowable Working Pressure:500 BAR
