Documentation
Please contact an Oilgear representative or authorized reseller.
SPM-1616-X-XX-SV
Max Allowable Working Pressure: 5000 PSI
SPM-1616-X-XX-SV SPM Valves
Multipurpose SPM valves combine the functionality of Normally Open, Normally Closed, Normally Open Bi-Directional, and Normally Closed Bi-Directional into a single valve. The valves are designed to fit cavities in existing OEM bodies.

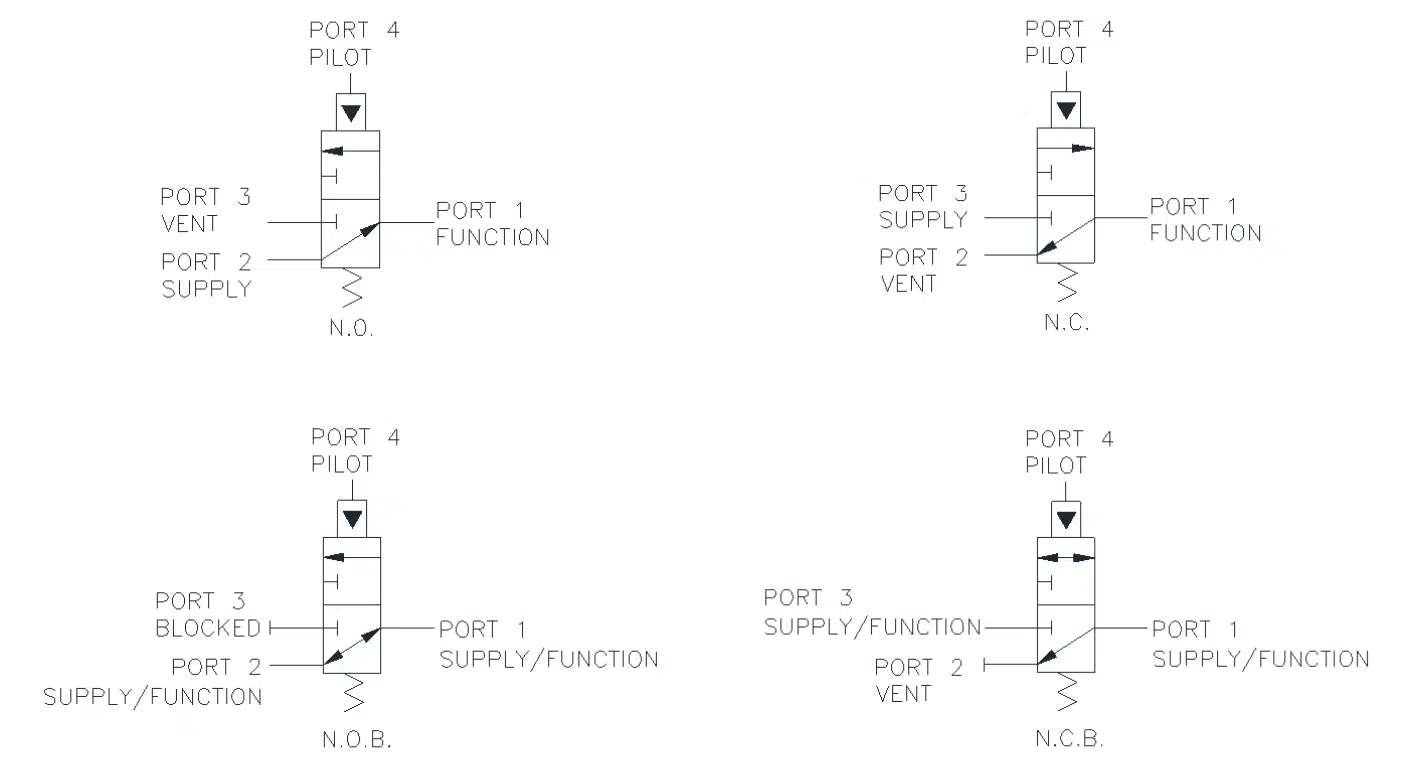

Base Hydraulic Symbol
At a Glance
- Fluid Type:BOP CONTROL FLUID,
- Application:1" nominal size multi-function SPM valve. Single-pilot operated valves for subsea control systems.,
- Media:Liquid
- Max Allowable Working Pressure:5000 PSI
- Cavity Types:NOV, Low-Shock, HMH, Cameron,
