PVM-098

Max Displacement: 98 cc/rev

PVM-098 - Legacy Oilgear PumpsVersatile Operations, Modular Design.

Designed to adapt to your most demanding applications, the Oilgear PVM line is made up of a selection of variable-displacement, axial-piston pumps. Their modular features create the flexibility integrators and OEMs they need to meet real-world challenges.

Base Hydraulic Symbol

At a Glance

Circuit Type:Open Loop
Pump Series:PVM Series
Control Response:Medium
Fluid Type:Hydraulic, Low-Lubricity,
Max Speed:2400 RPM
Max Continuous Pressure:260 Bar
Port Locations:Top/Bottom, Rear,

Suggested Alternative for PVM-098

PVM-098 is an Oilgear Legacy Product. For personalized recommendations and to ensure the best fit for your application, please get in touch with our technical support team ([email protected]). We're here to help you find the optimal solution for your needs.

PVG-100
Advanced Performance. Extremely Responsive.
Max Displacement: 100 cc/rev

Request More Information

Find an Oilgear Distributor

Technical Specifications
Product Resources

NOMINAL DIMENSIONS

Frame Size	Length		Width		Height		Weight		Face Mounting
Frame Size	in.	mm	in.	mm	in.	mm	lbs	kg	Face Mounting
C	11.91	302,5	10.73	272,5	10.45	265,4	136.0	61,7	SAE “C” 2/4 Bolt

NOMINAL OPERATING PARAMETERS

Theoretical Maximum Displacement	in^3/rev	6.00
Theoretical Maximum Displacement	ml/rev	98,3
Rated Continuous Pressure	psi	3750
Rated Continuous Pressure	bar	258,6
Peak Pressure	psi	4250
Peak Pressure	bar	293,1
Flow Rate at1800 RPM, rated continuous pressure & 14.7 psi (1.01 bar abs) inlet conditions	gpm	41.2
	l/min	156,0
Minimum Inlet Pressure psia (bar abs)	1200 rpm	6.7 (,46)
	1500 rpm	7.1 (,49)
	1800 rpm	8.3 (,57)
Maximum Speed	rpm	2450
Power Input at rated continuous pressure &1800 rpm	hp	109.2
Power Input at rated continuous pressure &1800 rpm	kW	81,4

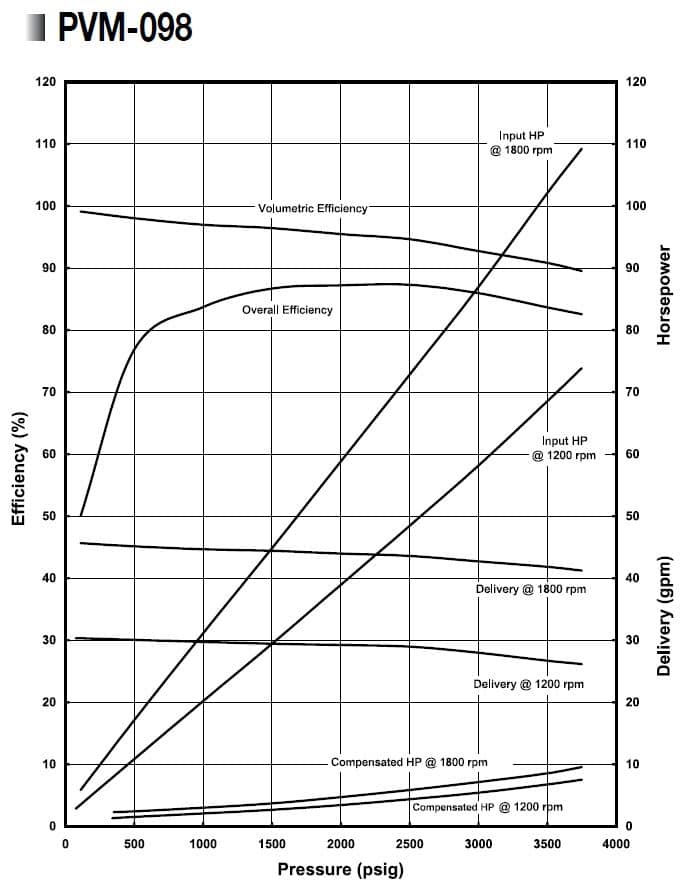

NOMINAL PERFORMANCE

Curves based on an oil temperature of 125¬∫ F (160 SSU) and 14.7 psia (1 bar absolute). Efficiency curves are based on pump running at1800 rpm.

CAD Files

In order to download, some browsers may require right click and “save as”.

Modeled with basic pressure compensation control module.

Product Resources

947070B - PUMPS - PVM PVM 011 014 022 025 034 046 064 065 075 076 098 and 130 Pump - Instructional Bulletin 947070B for PVM Pump Service and Parts List 11/2004
47070C - PUMPS - PVM PVM Pump Sales - Sales Bulletin 47070C for Ordering Information Features Benefits Specifications 12/2006
47972B - PUMPS - PVM PVM 064 076 098 & 130 C Frame Pump - Installation Data Sheet 47972B for PVM Rear Side and Thru-Shaft Ported with Shaft and Control Options Assembly Data 12/2003

Product Details

The PVM open-loop, axial-piston hydraulic pumps offer advanced engineering at an affordable price-and they’re virtually indestructible. Computer-optimized and with multiple controls available, these pumps deliver high performance in a compact design.

Available in three frame sizes and 12 displacements, durable PVM pumps feature Oilgear’s advanced “hard-on-hard” rotating system. That means they’re better at contamination resistance, they allow for higher pressure operation and they increase the pump’s life cycle.

Oilgear makes some of the longest-lasting, most reliable pumps in the world. And they’re designed to thrive on low-viscosity fluids, like high water content and fire-resistant fluids.
