NOMINAL DIMENSIONS
| Frame Size |
Length | Width | Height | Weight | Face Mounting | ||||
| in. | mm | in. | mm | in. | mm | lbs | kg | ||
| – | 17.14 | 435,4 | 14.34 | 364,2 | 11.94 | 303,3 | 325 | 147,4 | ISO 200 4-Bolt or SAE “E” |
NOMINAL OPERATING PARAMETERS
| Theoretical Maximum Displacement | in^3/rev | 15.26 |
| ml/rev | 250 | |
| Rated Continuous Pressure | psi | 5000 |
| bar | 345 | |
| Peak Pressure | psi | 5800 |
| bar | 400 | |
| Rated flow at continuous rated pressure: Non-Supercharged | 1000 rpm | 59 gpm |
| 223 lpm | ||
| 1200 rpm | 72 gpm | |
| 273 lpm | ||
| 15000 rpm | 91 gpm | |
| 344 lpm | ||
| 1800 rpm | 109 gpm | |
| 413 lpm | ||
| Rated flow at continuous rated pressure: Supercharged | 1800 rpm | 109 gpm |
| 413 lpm | ||
| 2200 rpm | 134 gpm | |
| 507 lpm | ||
| Maximum Speed | rpm | 1800 |

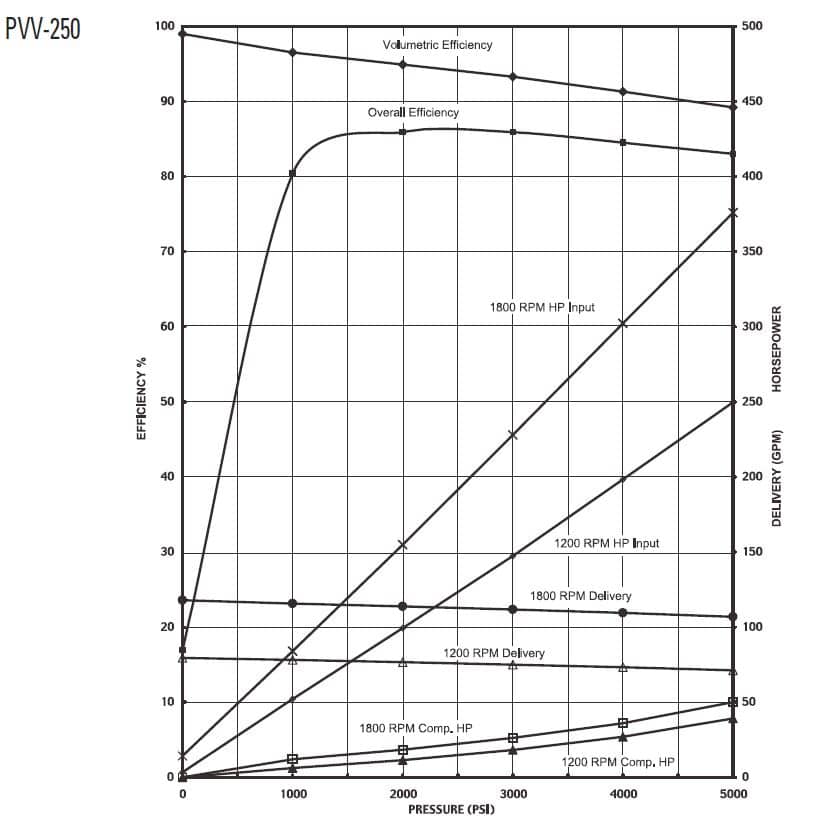

NOMINAL PERFORMANCE
Curves based on an oil temperature of 125º F (160 SSU) and 14.7 psia (1 bar absolute). Efficiency curves are based on pump running at1800 rpm.
