NOMINAL DIMENSIONS
| Frame Size |
Length | Width | Height | Weight | Face Mounting | ||||
| in. | mm | in. | mm | in. | mm | lbs | kg | ||
| – | 20.93 | 531,6 | 21.11 | 536,2 | 15.40 | 391,2 | 735 | 333 | ISO 250 4-Bolt |
NOMINAL OPERATING PARAMETERS
| Theoretical Maximum Displacement | in^3/rev | 33.00 |
| ml/rev | 540 | |
| Rated Continuous Pressure | psi | 5000 |
| bar | 345 | |
| Peak Pressure | psi | 5800 |
| bar | 400 | |
| Rated flow at continuous rated pressure: Non-Supercharged | 1000 rpm | 129gpm |
| 488 lpm | ||
| 1200 rpm | 155 gpm | |
| 587lpm | ||
| 1500 rpm | * | |
| * | ||
| – | ||
| – | ||
| – | ||
| – | ||
| – | ||
| – | ||
| Maximum Speed | rpm | 1200 |
* Consult Oilgear Technical Sales Department.

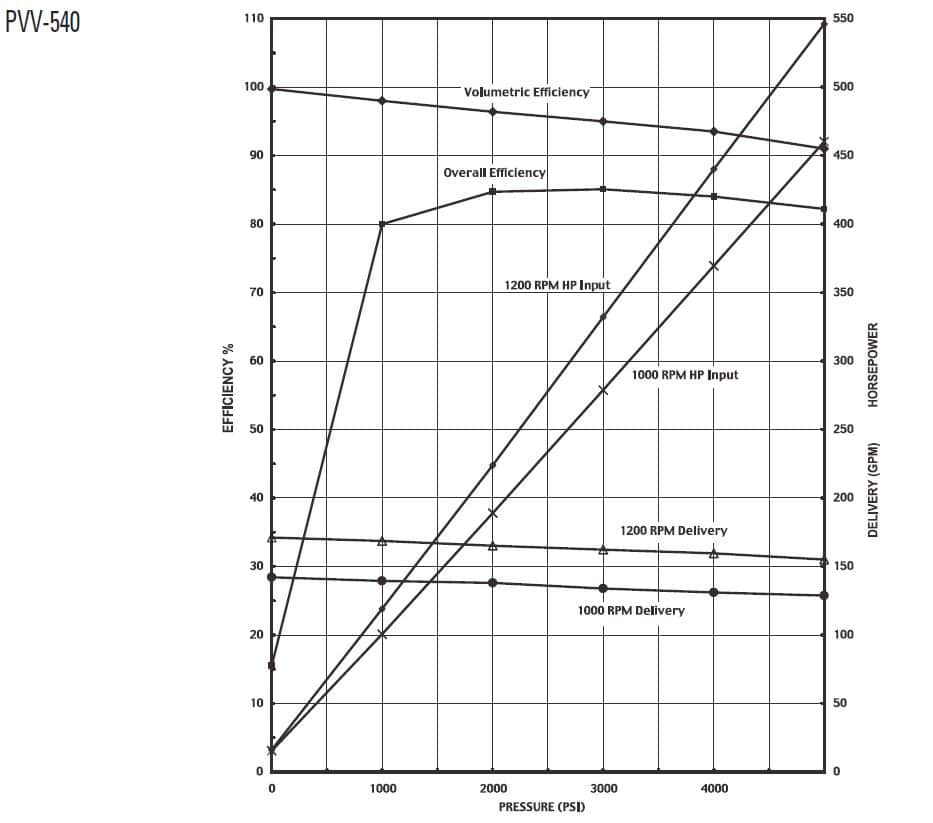

NOMINAL PERFORMANCE
Curves based on an oil temperature of 125º F (160 SSU) and 14.7 psia (1 bar absolute). Efficiency curves are based on pump running at1200 rpm.
