NOMINAL DIMENSIONS
Unit |
Length | Width | Height | Weight | |||||
| in. | mm | in. | mm | in. | mm | lbs | kg | ||
| w/Integral charge pump | 9.4 | 238,8 | 5.2 | 132,1 | 5.4 | 137,2 | 38.0 | 17,3 | |
| w/o Integral charge pump | 7.1 | 180,3 | 5.2 | 132,1 | 5.4 | 137,2 | 33.4 | 15,2 | |
NOMINAL OPERATING PARAMETERS
| Theoretical Maximum Displacement | in^3/rev | 1.35 |
| ml/rev | 22,1 | |
| Rated Continuous Pressure | psi | 3000 |
| bar | 207 | |
| Peak Pressure – 10% of duty cycle | psi | 3500 |
| bar | 240 | |
| Peak Pressure | psi | 5000 |
| bar | 350 | |
| Flow Rate at1800 RPM, rated continuous pressure & 14.7 psi (1.01 bar abs) inlet conditions | gpm | 8.5 |
| l/min | 32,2 | |
| Maximum Speed | rpm | 3600 |

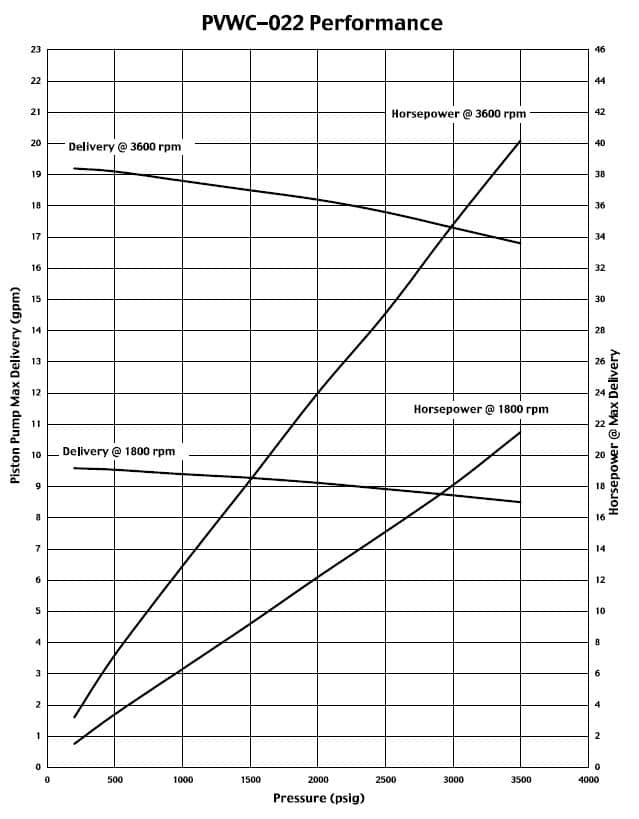

NOMINAL PERFORMANCE
Curves based on an oil temperature of 125º F (160 SSU) and 14.7 psia (1 bar absolute). Efficiency curves are based on pump running at1800 rpm.
