NOMINAL DIMENSIONS
| Frame Size |
Length | Width | Height | Weight | Face Mounting | ||||
| in. | mm | in. | mm | in. | mm | lbs | kg | ||
| – | 17.14 | 435,4 | 14.34 | 364,2 | 11.94 | 303,3 | 325 | 147,4 | ISO 200 4-Bolt or SAE “E” |
NOMINAL OPERATING PARAMETERS
| Theoretical Maximum Displacement | in^3/rev | 12.20 |
| ml/rev | 200 | |
| Rated Continuous Pressure | psi | 6000 |
| bar | 414 | |
| Peak Pressure | psi | 6500 |
| bar | 450 | |
| Rated flow at continuous rated pressure: Non-Supercharged | 1000 rpm | 47 gpm |
| 178 lpm | ||
| 1200 rpm | 58 gpm | |
| 219 lpm | ||
| 1500 rpm | 72 gpm | |
| 273 lpm | ||
| 1800 rpm | 86 gpm | |
| 326 lpm | ||
| Rated flow at continuous rated pressure: Supercharged | 1800 rpm | 86 gpm |
| 326 lpm | ||
| 2200 rpm | 106 gpm | |
| 401 lpm | ||
| Maximum Speed | rpm | 1800 |

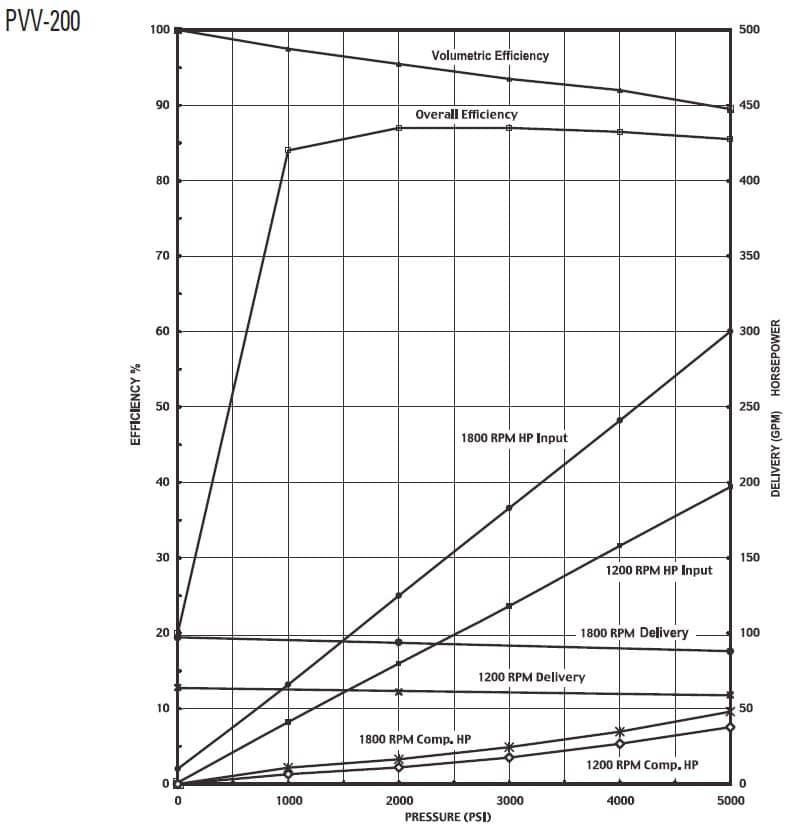

NOMINAL PERFORMANCE
Curves based on an oil temperature of 125º F (160 SSU) and 14.7 psia (1 bar absolute). Efficiency curves are based on pump running at1800 rpm.
